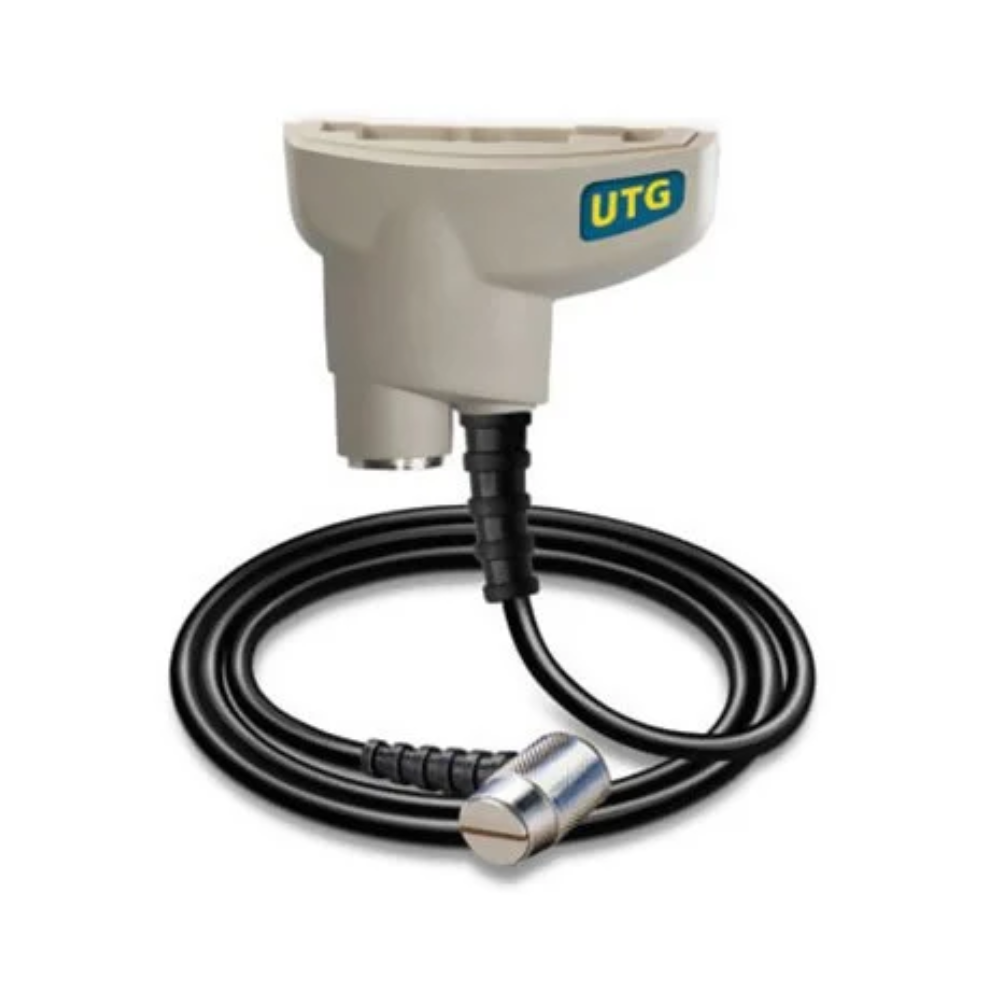

DeFelsko PRBUTGC-C PosiTector UTG C Ultrasonic Corrosion Probe, 5 MHz (Each)

The DeFelsko PRBUTGC-C PosiTector UTG C probe uses ultrasonic technology to measure the wall thickness of steel, plastic, and other materials from one accessible side. Its dual-element transducer and automatic V-path compensation provide accurate measurements on thin, pitted, or corroded surfaces, making it ideal for inspecting tanks, pipes, and other structures affected by corrosion or erosion.

This is a cabled probe only. A compatible PosiTector gage body is required and sold separately.

Specs

• Brand: DeFelsko

• MPN: PRBUTGC-C

• Alternate Part Number: PRB-UTGC-C

• Manufacturer Order Code: PRBUTGC

• Product Line: PosiTector UTG

• Product Type: Ultrasonic Corrosion Probe

• Probe Configuration: Cabled

• Probe Type: 5 MHz Dual Element

• Measurement Mode: Single Echo

• Measurement Range: 0.040–5.000 in (1.00–125.00 mm)

• Resolution: 0.001 in (0.01 mm)

• Accuracy: ±0.001 in (±0.03 mm)

• Cable Type: PVC

• Cable Length: 3.3 ft (1 m)

• Probe-Tip Material: PEEK

• Probe Diameter: 0.5 in (13 mm)

• Probe Height: 1 in (25 mm)

• V-Path Compensation: Automatic

• Thru-Paint Capability: No

• Recommended Applications: Measuring Wall Loss Caused by Corrosion or Erosion

• Recommended Materials: Steel, Plastic, and Other Suitable Materials

• Compatible Equipment: PosiTector Standard and Advanced Gage Bodies

• Gage Body Included: No

• Conformance Standard: ASTM E797

• Country of Origin: USA

• Selling Unit: Each
