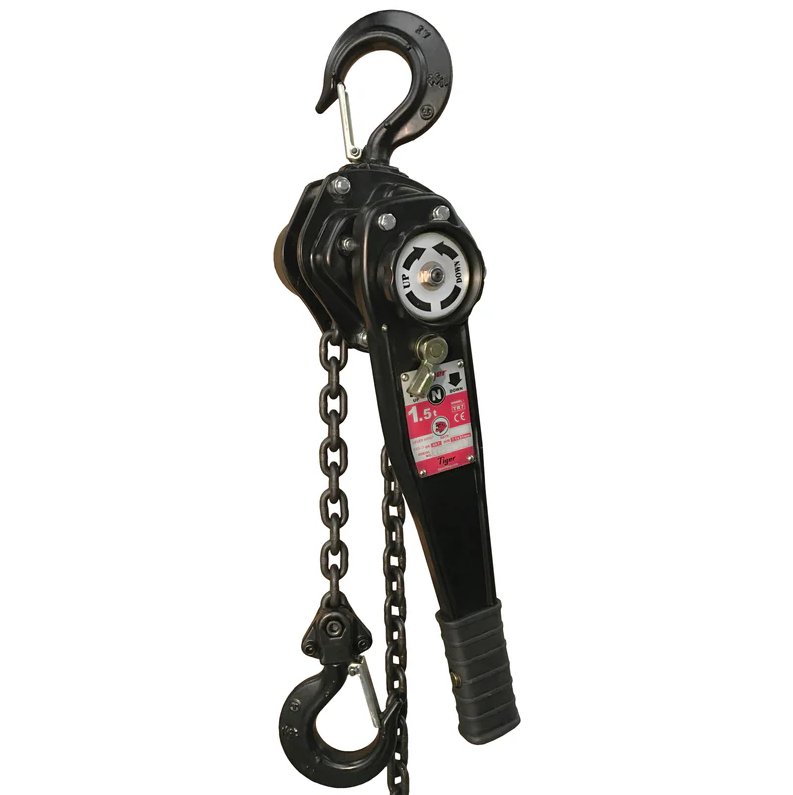

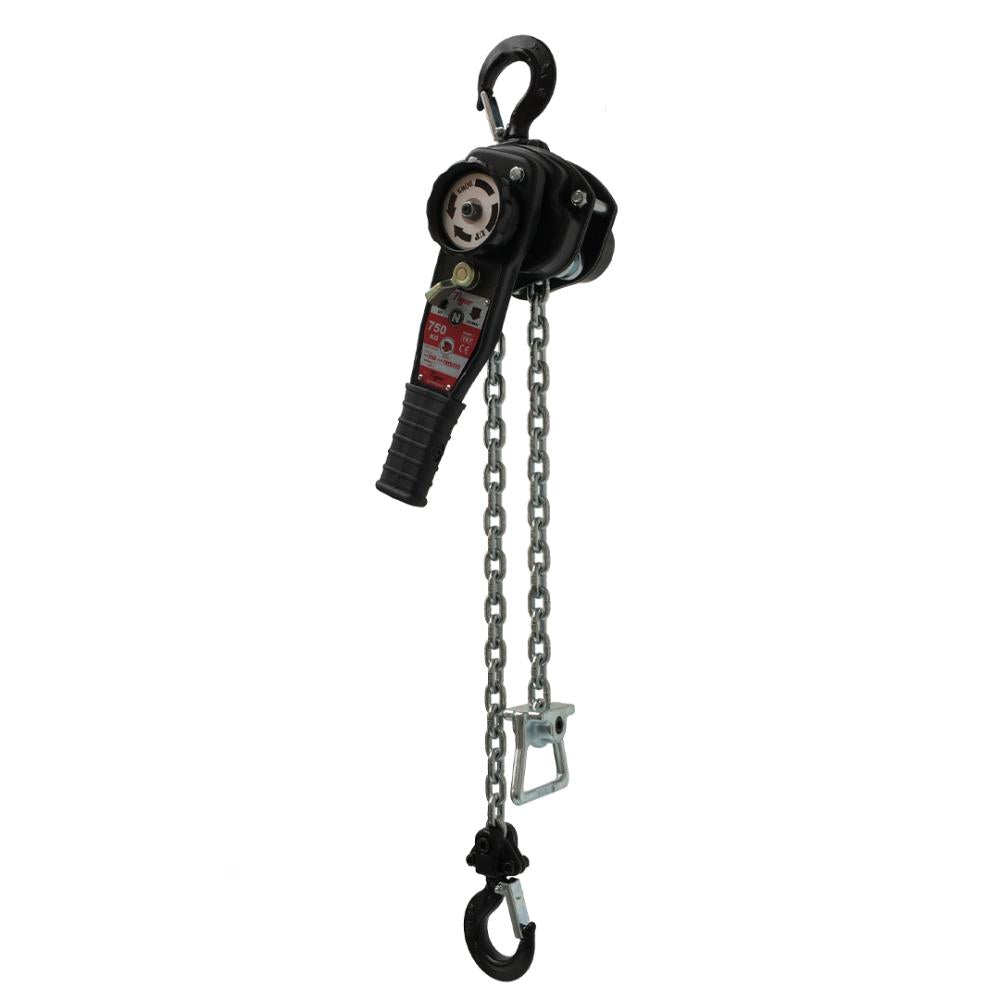

Tiger Lifting TR7LH-0150-10 TR7 Industrial Lever Hoist, 1.5-Ton Capacity, 10' Lift
TLNA-TR7LH-0150-10
- Low stock - 9 items left
- Backordered, shipping soon
The Tiger Lifting TR7LH-0150-10 industrial lever hoist provides a 1.5-ton working load limit and 10 ft. of lift for demanding lifting, pulling, positioning, and tensioning applications. Its compact pressed-steel body, Grade 80 alloy load chain, forged hooks, and twin-pawl mechanical brake provide dependable operation in industrial and construction environments.
Specifications
- Brand: Tiger Lifting
- Manufacturer part number: TR7LH-0150-10
- Series: TR7
- Product type: Industrial lever chain hoist
- Working load limit: 1.5 tons / 3,300 lb.
- Lift height: 10 ft.
- Pulling effort at rated load: 57 lb.
- Load chain: Grade 80 calibrated alloy chain
- Load-chain diameter: 7.1 mm
- Number of chain falls: 1
- Brake: Twin-pawl mechanical brake
- Hooks: Drop-forged, heat-treated alloy hooks with safety latches
- Body construction: Pressed steel
- Handle rotation: 360°
- Operation: Single-hand freewheeling with short-stroke lever action
- Design factor: 4:1
- Proof tested: 1.5 times rated capacity
- Operating temperature: -40°F to 122°F
- Applicable standards: ANSI/ASME B30.21, BS EN 13157, AS 1418.2, and SANS 1636
- Country of origin: Taiwan
- Quantity: 1 lever hoist
