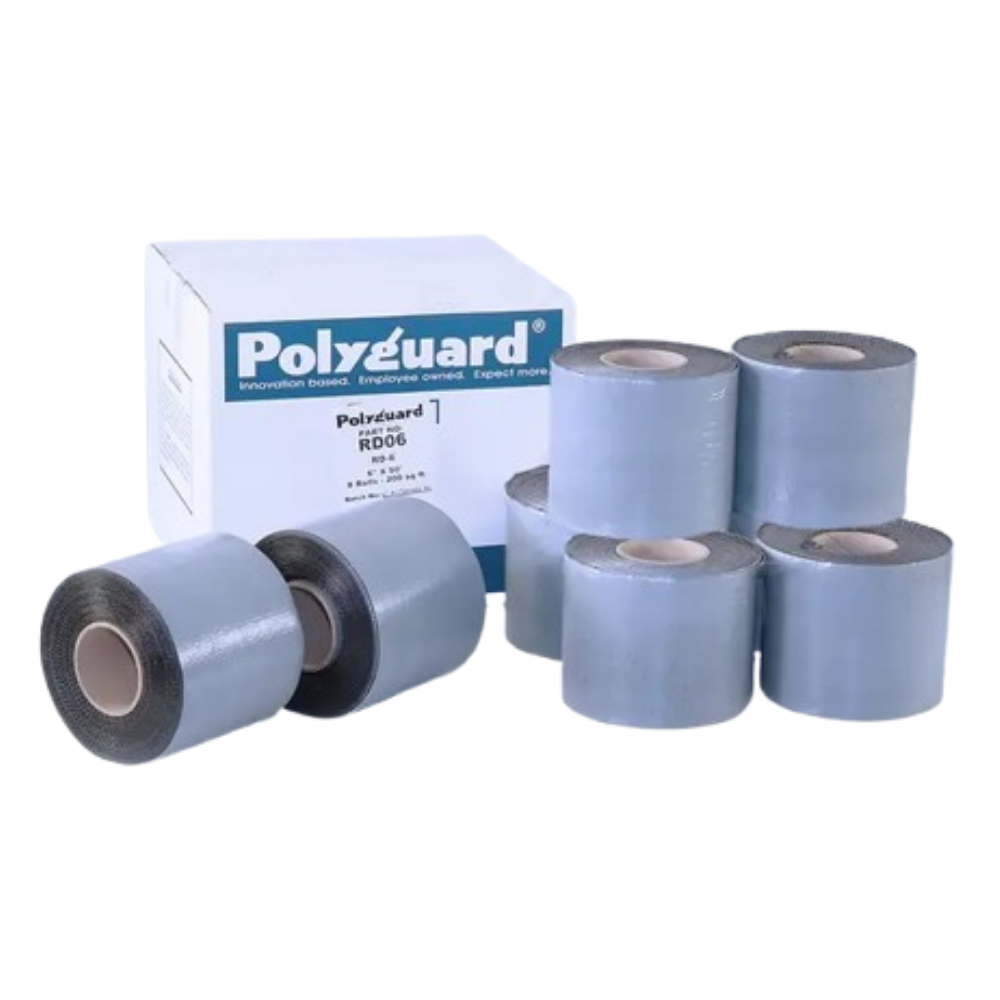

Polyguard RD06 RD-6 Pipeline Coating, 6 in. x 50 ft., 8 Rolls – 200 sq. ft. (Case)

Polyguard RD-6 is a non-shielding external pipeline coating designed to protect buried and submerged steel pipe from corrosion. Its polymer-modified coating layer is bonded to a tightly woven polypropylene geotextile backing that provides high strength, low elongation, and resistance to soil stress.

The non-shielding construction allows cathodic-protection current to reach the pipe if disbondment occurs. RD-6 requires no curing, permits immediate backfilling, and can be applied to line-pipe rehabilitation, new-construction girth welds, bends, and irregular shapes.

Specs

• Brand: Polyguard

• Part Number: RD06

• Product Type: Non-Shielding Pipeline Coating

• Roll Width: 6 in.

• Roll Length: 50 ft.

• Rolls Included: 8

• Coverage per Roll: 25 sq. ft.

• Total Case Coverage: 200 sq. ft.

• Total Thickness: 50 mil

• Coating: Polymer-Modified Corrosion-Protection Layer

• Backing: Woven Polypropylene Geotextile

• Release Liner: Silicone-Coated

• Maximum Pipeline Operating Temperature: 145°F

• Application: Spiral-Wrapped Over a Properly Prepared and Primed Surface

• Minimum Recommended Overlap: 1 in.

• Recommended Overlap for Girth Welds and Challenging Conditions: 50%

• Standards: NACE SP0109-2023, ANSI/AWWA C233-24, CSA Z245.30:22 and ISO 21809-3

• Applications: Buried and Submerged Pipelines, Rehabilitation and New-Construction Girth Welds

• Selling Unit: Case

Important Application Information

• Compatible liquid adhesive and the applicable outerwrap are sold separately.

• Above-ground installations require Polyguard UV Overcoat for protection from ultraviolet exposure.

• Use RD-6 HT instead of RD-6 for pipeline operating temperatures above 145°F.
