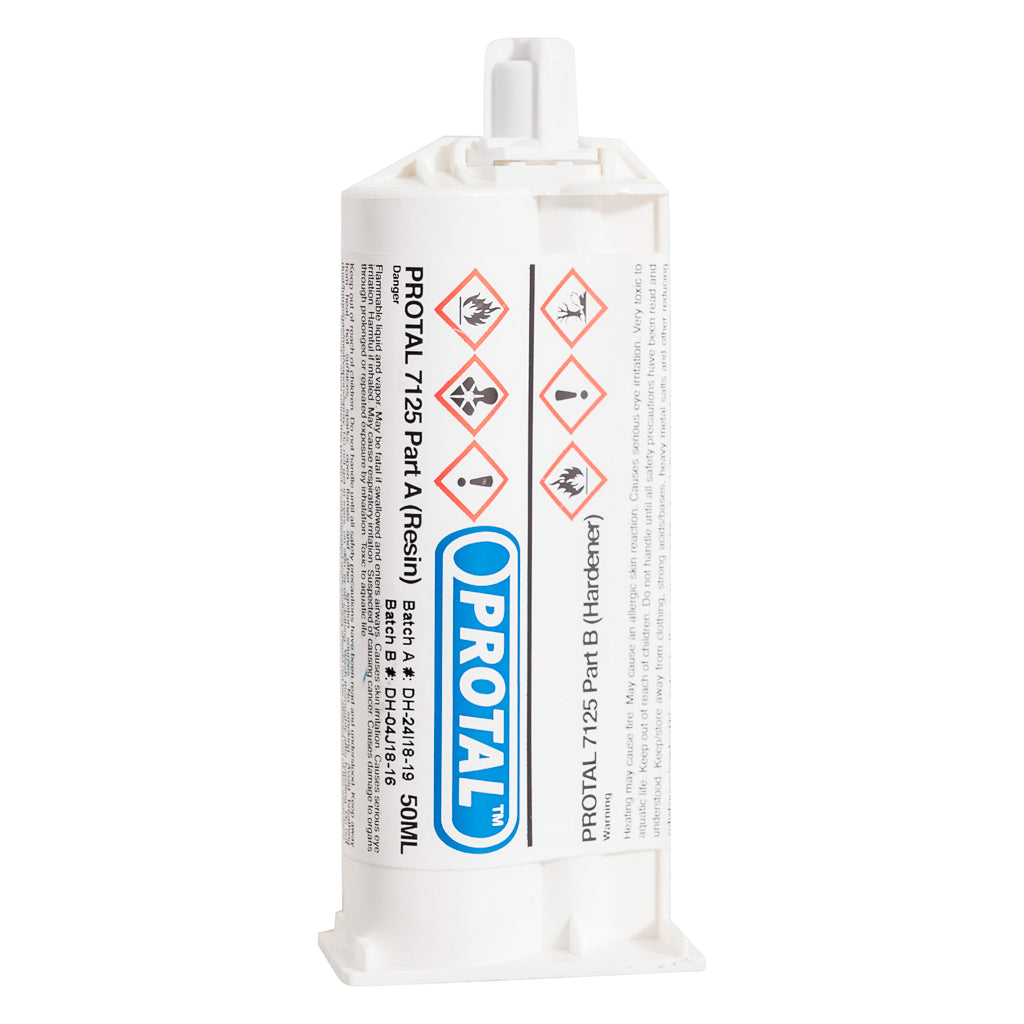

Denso 614066PI Protal 7125 Low-Temperature Pipeline Repair Cartridge, 50 mL (Each)
DNS-614066PI
- In stock, ready to ship
- Backordered, shipping soon
Denso Protal 7125 is a fast-curing, two-component pipeline repair coating formulated for damaged fusion-bonded epoxy (FBE) and other liquid-coated pipelines. The 50 mL dual cartridge is suited to localized coating repairs, holidays, pinholes and Cadweld areas in the field or shop.
Its low-temperature formulation can be applied to surfaces from -4°F to 135°F and cures even when submerged after application. The high-build, abrasion-resistant coating provides strong adhesion to steel and FBE without shielding cathodic protection. A compatible 10:1 dispensing gun and static mixing tip are required and sold separately.
Specs
Brand: Denso North America
Part Number: 614066PI
Product Line: Protal 7125
Product Type: Pipeline Repair Coating
Container Type: Dual-Component Cartridge
Cartridge Capacity: 50 mL
Mixing Ratio: 10:1 by Volume
Mixed Color: Light Gray
Mixed Form: Thixotropic Liquid
Reactive Solids: 100%
Mixed Specific Gravity: 1.53
Surface Application Temperature: -4°F to 135°F
Service Temperature: -40°F to 150°F
Recommended Thickness for Weld Joints and FBE Repairs: 25–30 mils
Thickness Range for Weld Joints and FBE Repairs: 20–60 mils
Adhesion to Steel: 2,400 psi
Hardness: Shore D 70+
Recommended Uses: FBE Repairs, Liquid-Coating Repairs and Cadweld Areas
Storage Life: 12 Months in Original Containers
Storage Temperature: 33°F to 80°F
Required Equipment: Compatible 10:1 Cartridge Gun and Static Mixing Tip
Included: One 50 mL Repair Cartridge
Selling Unit: Each
