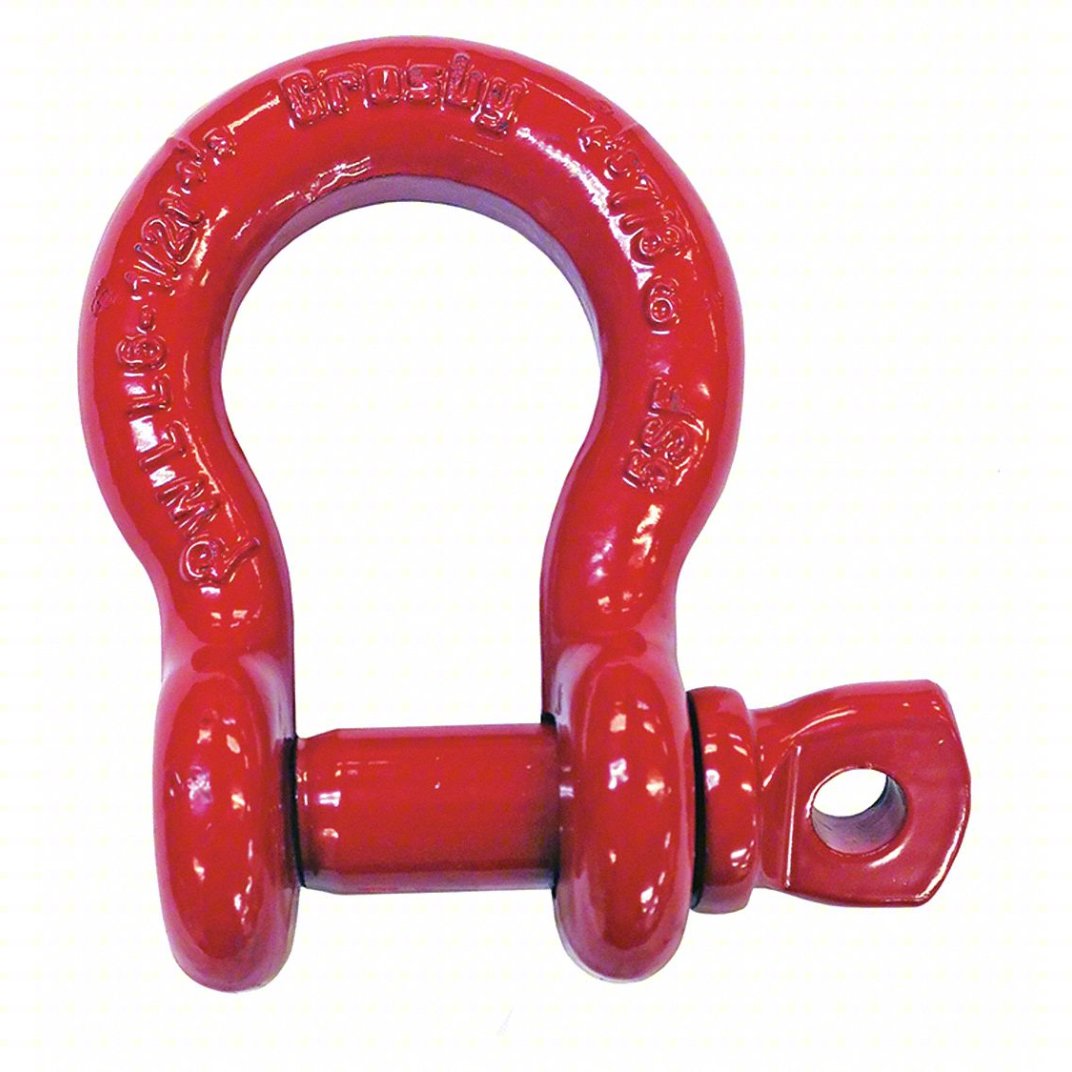

Crosby 1018589 S-209 1-1/4 in. Screw Pin Anchor Shackle, 12 Ton WLL, Self-Colored (Each)
CBY-1018589
- In stock, ready to ship
- Backordered, shipping soon
The Crosby 1018589 S-209 is a heavy-duty screw pin anchor shackle with a 12-ton working load limit. Its forged, quenched-and-tempered steel construction and alloy screw pin provide dependable performance in lifting, rigging, and load-securement applications. The shackle is load rated, fatigue rated, and permanently marked with its working load limit and Grade 6 designation.
Specs:
Brand: Crosby
MPN: 1018589
Model: S-209
Product Type: Screw Pin Anchor Shackle
Nominal Size: 1-1/4 in.
Working Load Limit: 12 Tons / 24,000 lb.
Design Factor: 6:1
Maximum Proof Load: 2 Times the Working Load Limit
Material: Forged, Quenched-and-Tempered Steel
Pin Material: Alloy Steel
Grade: Grade 6
Finish: Self-Colored
Pin Type: Removable Screw Pin
Width Between Eyes: 2.03 in.
Pin Diameter: 1.38 in.
Inside Length: 4.69 in.
Inside Bow Width: 3.26 in.
Overall Width: 5.76 in.
Overall Length: 8.26 in.
Operating Temperature Range: -40°F to 400°F
Product Weight: 9.50 lb.
Standard Compliance: Meets or Exceeds ASME B30.26
Selling Unit: Each
