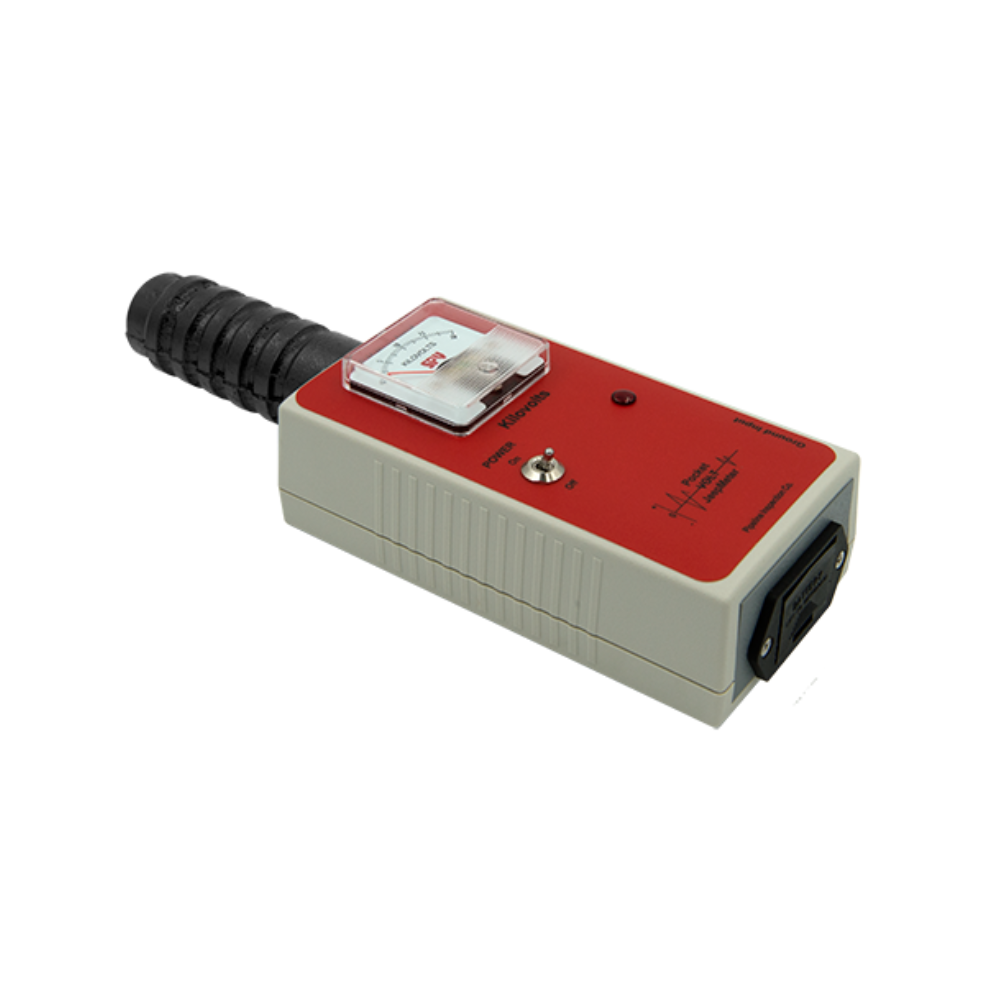

SPY PJM Pocket JeepMeter Analog Pulse Holiday Detector Voltmeter, 1–20 kV (Each)
SPY-PJM
- Low stock - 5 items left
- Backordered, shipping soon
The SPY Model PJM Pocket JeepMeter is a portable analog voltmeter designed to measure the high-voltage pulse output of pipeline coating holiday detectors. It measures the crest value of non-sinusoidal pulse waveforms up to 20 kV, helping operators confirm that holiday detectors are producing the required inspection voltage. The compact, battery-powered meter includes the necessary test cables and a carrying case for convenient field use.
Specs
Brand: SPY
Manufacturer: Pipeline Inspection Company
Model: PJM
Product Type: Pocket JeepMeter / Holiday Detector Voltmeter
Measurement Type: Pulse Only
Voltage Range: 1–20 kV
Measurement Accuracy: ±5% at 75°F
Display Type: Analog
Operating Temperature: -4°F to 148°F (-20°C to 64.5°C)
Power Source: One 9V Alkaline Battery
Length: 9.75 in
Width: 3.25 in
Height: 2.25 in
Compatible Equipment: Pulse-Output Holiday Detectors
Compatible SPY Models: 125, 135, 785, and 790
Compliance: CE
Factory Warranty: 12 Months
Selling Unit: Each
Included Components: Pocket JeepMeter, High-Voltage Cable, Ground Cable, 9V Battery, and Carrying Case
